Application of vibrating feeder machine
The Vibrating Feeder (Vibratory feeder) is used to transfer the large size materials and granular materials from Silo to
receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher
continuously and uniformly also to screen the materials in the sandstone production line. The Vibrating Feeder is widely
used to match the crushing and sieving equipment in many industries including metallurgy, coal mine, mineral
dressing, building material, chemical, grinding, etc.

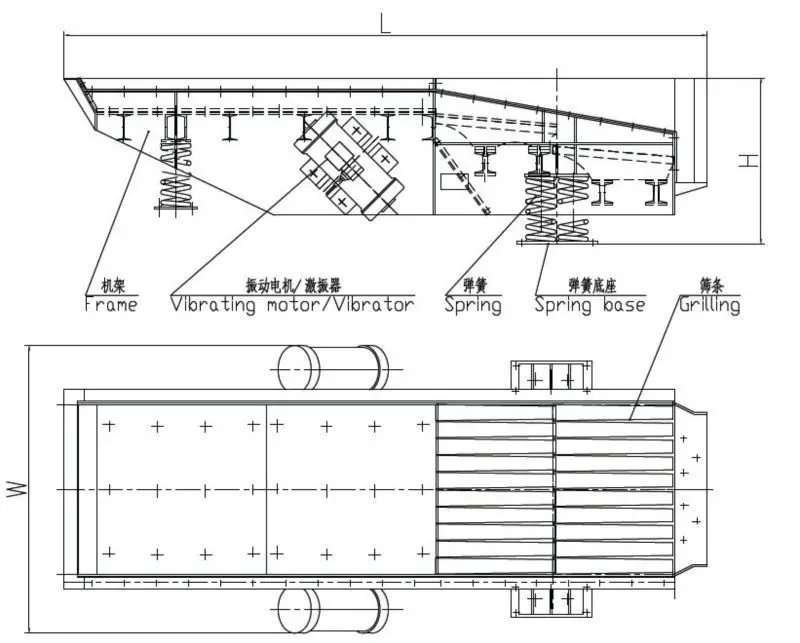

ZSW Series Structural Drawing
The Vibrating Feeder (Vibratory feeder) is used to transfer the large size materials and granular materials from Silo to
receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher
continuously and uniformly also to screen the materials in the sandstone production line. The Vibrating Feeder is widely
used to match the crushing and sieving equipment in many industries including metallurgy, coal mine, mineral
dressing, building material, chemical, grinding, etc.
Working Principle of vibrating feeder
There are two eccentric shafts rotating at high speed at the same time from opposite
There are two eccentric shafts rotating at high speed at the same time from opposite
directions, thus the strong centrifugal force is formed. The component forces of cent
rifugal force along the vibrating direction will always overlap each other, then counter
act with that of vertical force from vibrating direction, then exciting force along single
direction is formed to drive the feeder vibrate along straight line. When materials are
fed into the feeder, they may be thrown up and move like Para curve,then fall down.
The materials will move forward on the slope surface of the stone vibrating feeder
price
The materials will move forward on the slope surface of the stone vibrating feeder
price
ZSW Series Structural Drawing

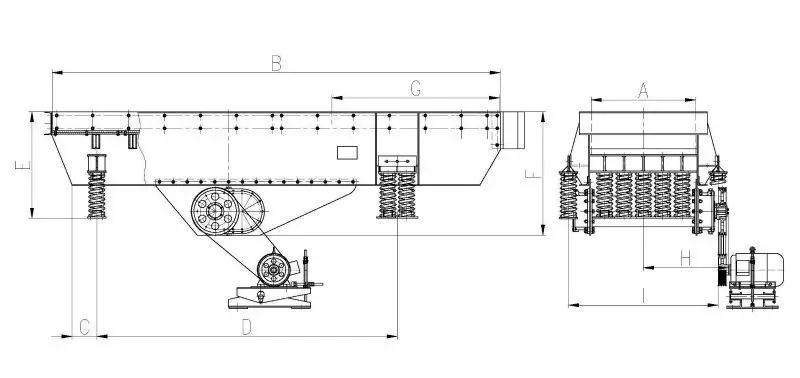

GZD Series Structural Drawing
Feature of GZD / ZSW Vibrating Feeder
1. It can divide into two types: vibrating feeder and linear feeder.
2. It can realize the continuously and uniformly feeding for the crushing machines,
as well as can finish the coarse sieving on
material.
mining vibrating hopper feeder

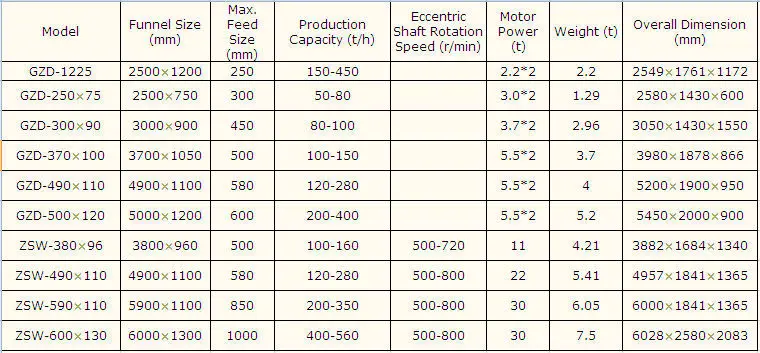

Technical Parameters of GZD / ZSW Vibrating Feeder
Feature of GZD / ZSW Vibrating Feeder
1. It can divide into two types: vibrating feeder and linear feeder.
2. It can realize the continuously and uniformly feeding for the crushing machines,
as well as can finish the coarse sieving on
material.
mining vibrating hopper feeder
Technical Parameters of GZD / ZSW Vibrating Feeder
